Oil volume for gearboxes

Choose family, model, and position code for fill volume in liters. Recommended lubricant viscosity: ISO VG 150.

Start with the gearbox family (product line), then choose the model and mounting position (same codes as in the Dinamic manual—e.g. B3, V5, “Complete filling”). The table returns the approximate fill volume in liters for that configuration.

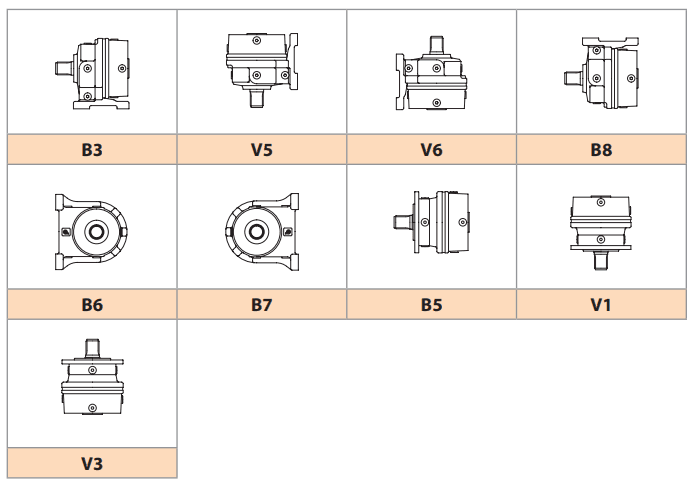

Reference grid of gearbox mounting orientations: schematic drawings for positions B3, V5, V6, B8, B6, B7, B5, V1, and V3. — Mounting position reference
Use this chart to identify your installation before choosing the position code (B3, V5, V6, B8, B6, B7, B5, V1, V3) in the selector below.

Family

Gearbox model

Position / orientation

Data compiled from Dinamic technical documentation. Typical fill grade is ISO VG 150 unless your revision or application specifies otherwise—always confirm grade and procedure with the manual. Volumes are approximate; use the sight plug / level procedure described for your unit.

Need an alternative oil, flushing, or a manual you cannot find? Contact application support or browse literature.
