Planetary hoists
Our extensive range of planetary hoists, coupled with large inventory and a dynamic test bay, helps teams design and modify configurations quickly.
Dinamic Oil produces one of the most complete and versatile ranges of planetary hoists in the industry. The A, NP, P, and S Series complete our standard hoist offering from 1,000 to 21,000 lbs of nominal line pull. SRD and WDD series hoists and drives support customized solutions up to 95,000 lbs of nominal line pull.
Hoists are designed to lift a load vertically, while winches are designed to pull a load in a horizontal direction.
Dependable lift after lift
A modular hoist portfolio that scales from compact utility lifts to high-capacity custom drum line pull configurations with predictable control and serviceability.
Comparison
Max hoist line pull capacity
Nominal drum line pull chart
| Series | Line pull (lbs) | Line pull (kg) |
|---|---|---|
| NP Series | 3,600 | 1,632 |
| P Series | 5,600 | 2,540 |
| CW Series | 5,700 | 2,585 |
| A Series | 17,500 | 7,937 |
| S Series | 28,680 | 13,009 |
| SE Series | 28,680 | 13,009 |
| SRD Series | 66,000 | 29,937 |
| WDD Series | 70,000 | 31,751 |
- NP Series3,600 lbs (1,632 kg)
- P Series5,600 lbs (2,540 kg)
- CW Series5,700 lbs (2,585 kg)
- A Series17,500 lbs (7,937 kg)
- S Series28,680 lbs (13,009 kg)
- SE Series28,680 lbs (13,009 kg)
- SRD Series66,000 lbs (29,937 kg)
- WDD Series70,000 lbs (31,751 kg)
Product lines
Series overview
Compact NP and P families through high-capacity SRD/WDD drives—each series is tuned for line pull, packaging, and duty-cycle fit.

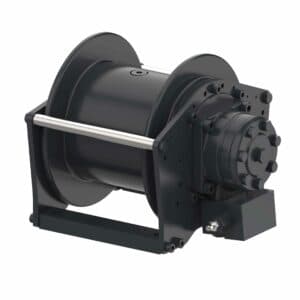

NP Series
1,000 to 3,600 lbs nominal drum line pull
Extremely compact package with an integral drum/ring gear and internal negative static multi-disc brake.
View series

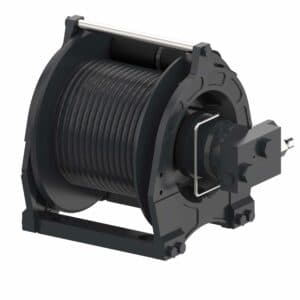

P Series
1,700 to 5,600 lbs nominal drum line pull
Compact architecture with gears, brake, counterbalance valve, and motor packaged inside the drum.
View series

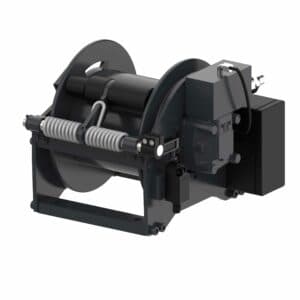

CW Series
Up to 5,700 lbs nominal drum line pull
Compact gearbox/brake-in-drum design enabling high rope capacity and faster line speeds.
View series

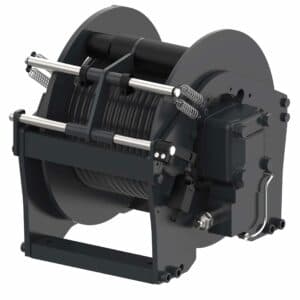

S Series
4,500 to 28,680 lbs nominal drum line pull
Powerful lifting family for applications requiring compact profile and reliable duty-cycle performance.
View series

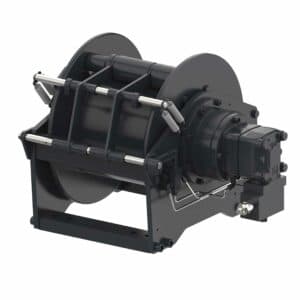

SE Series
4,500 to 28,680 lbs nominal drum line pull
Compact high-speed profile with orbit, variable, and fixed axial piston motor input options.
View series

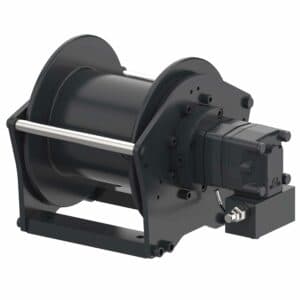

A Series
1,000 to 21,000 lbs nominal line pull
US-focused series with pre-drilled supports for field accessories such as tensioners and last-wrap indicators.
View series
SRD Series
16,000 to 67,000 lbs nominal line pull
Hoist family built from winch-drive technology with logical pull increments for cleaner selection coverage.
View series

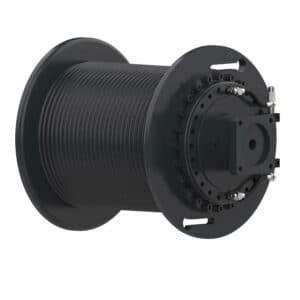

WDD Series
16,000 to 70,000 lbs nominal line pull
Planetary winch-drive architecture with customer-defined drum and bearing support configuration.
View series

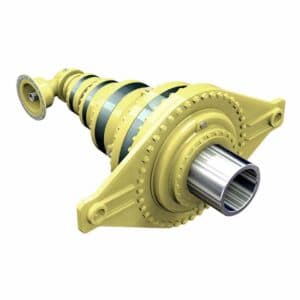

Custom Hoists
Application-defined custom envelope
Modular platform and engineering flexibility for custom packaging, interfaces, finishes, and duty profiles.
View series
Specialty
Electric hoists
Dedicated carousel winch and hoist families for tower crane applications with grooved drums, IEC/NEMA motor inputs, and geared encoders for positioning.
- Electric Hoist Series: 1,400 to 15,000 lbs nominal line pull
- Electric Carousel Winches: 335 to 1,600 lbs nominal line pull
Due to flexible modular design, Dinamic Oil can deliver custom hoist solutions for constrained space, unique configuration, or specific finishing requirements.
Applications & use cases
- Utility and service trucks
- Construction and material handling
- Energy and infrastructure maintenance
- Industrial lifting and positioning systems
Differentiators
- Range of drum and line pull options—including high nominal pull configurations
- Solutions-oriented engineering for non-standard installs
- Built for service access and long service life
Engineering
Technical focus
Conversation starters for integration teams—documentation deepens during active projects.
- Drum geometry, fleet angles, and rope management
- Braking interfaces and holding requirements
- Hydraulic and control system integration
