Winch series

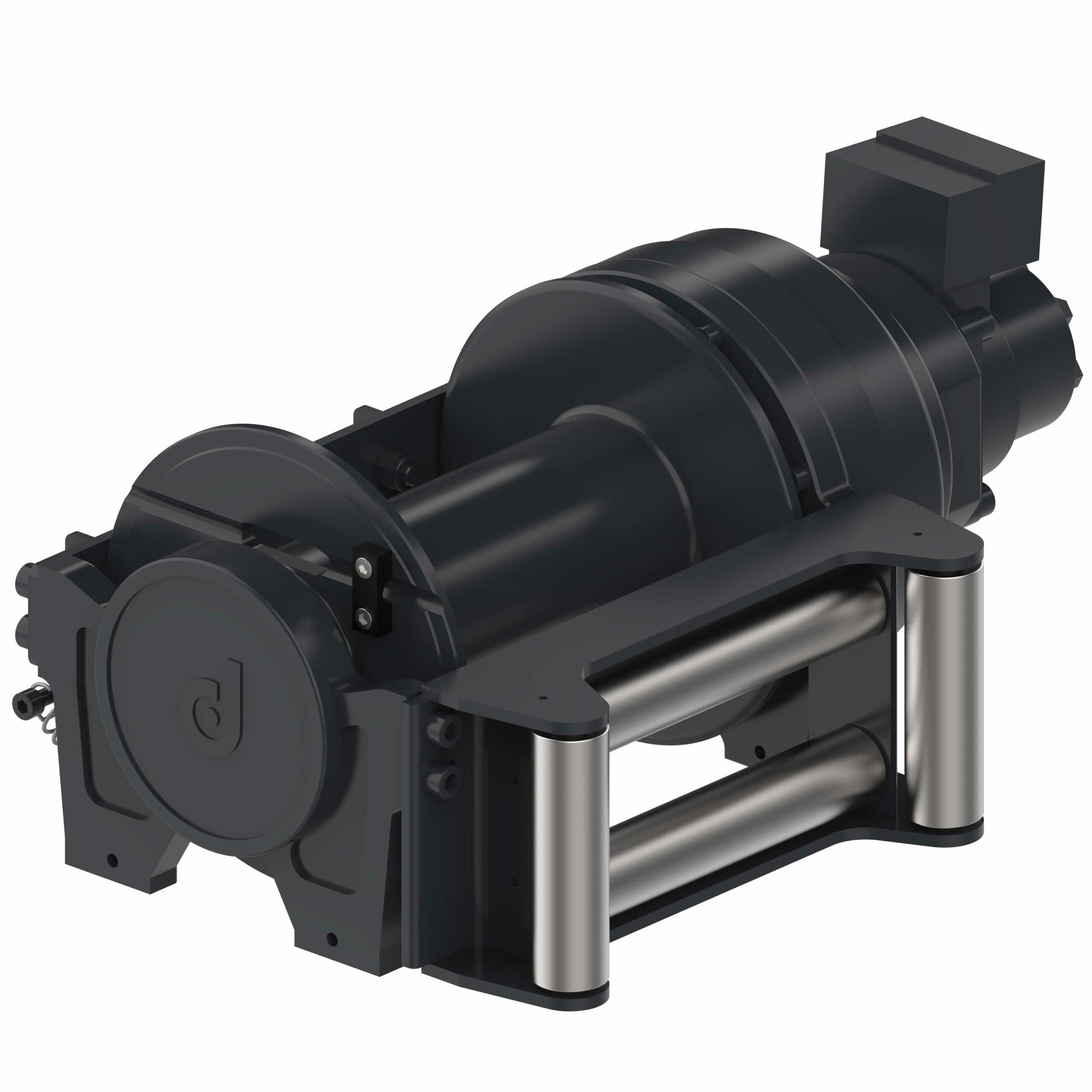

T Series
Dinamic Oil recovery winches are designed with the customer in mind to ensure ease of use from installation through maintenance.
The series features independent high-efficiency planetary gears, a cast iron drum, and structural steel supports. Each winch includes a mechanical drum release mechanism, negative static multi-disc brake, hydraulic motor, and control valve.
5,000 to 66,000 lbs nominal drum line pull class
Nominal drum line pull chart
Max winch line pull capacity
T Series model comparison
| Model | Line pull (lbs) | Line pull (kg) |
|---|---|---|
| T27 | 5,950 | 2,700 |
| T36 | 7,940 | 3,600 |
| T46 | 10,140 | 4,600 |
| T60 | 13,230 | 6,000 |
| T100 | 22,000 | 10,000 |
| T200 | 44,100 | 20,000 |
| T300 | 66,140 | 30,000 |
- T275,950 lbs (2,700 kg)
- T367,940 lbs (3,600 kg)
- T4610,140 lbs (4,600 kg)
- T6013,230 lbs (6,000 kg)
- T10022,000 lbs (10,000 kg)
- T20044,100 lbs (20,000 kg)
- T30066,140 lbs (30,000 kg)
Capabilities
Key features
Highlights from the official series pages, presented in a concise technical summary.
- Support structure can be adapted to meet various installation requirements
- Standard cast iron smooth drums
- Hydraulic over-center valve prevents the motor from losing control of the load
- Optional cable fairleads and cable tensioners
- Under or overwound, CW and CCW directions
- Drum free spool allows the drum to rotate independently for manual cable release
- Optional hydraulic or pneumatic drum free spool feature
- Hydraulic orbit motor and control valve included
- Negative static multi-disc brake
- 98% efficient planetary gears
- Smooth and quiet transmission due to gear design profile
- Low profile design for compact installation—saves weight and space
Quality assurance
Dynamic winch testing
To ensure every winch is field installation-ready, we dynamically test each unit prior to shipment. Testing confirms your winch will work as designed, every time.
- Every winch assembled or repaired is subject to dynamic testing
- Product is ready for use as soon as you install it
- Used for custom and prototype testing
- Ensures counterbalance valves are configured properly
- Line pull verification by pressure (PSI)
- Line speed verification by flow (GPM)
- Test certificates available by serial number upon request
The system can provide 50 GPM and 4,500 psi, and the computerized control center allows relief pressure or flow rate to be set—pre-configured for prototype or production units.
Test procedure includes:
- Static and dynamic seal test
- Brake hold test
- Sprag clutch test
- Ascent and descent under 50% load
- Verification of line pull and speed at given PSI and GPM
- Log test results by serial number
Accessories
Common options
Optional equipment to improve spooling, cable life, and operator workflow. Availability depends on configuration.
- Cable tensioners—optional accessories that assist with cable spooling and can extend cable life; rust-protected steel and nitrile rubber rollers on high-efficiency spherical bearings
- Cable fairleads—guide the cable and limit lateral movement; welded structural metal with horizontal and vertical steel rolls on self-lubricating bushings
- Hydraulic or pneumatic drum free spool—drum rotation independent and controllable for hand payout of wire rope
- Wire rope and installation—appropriate wire rope supply and optional factory installation on the winch
