Torque product
Energi Pressure Management
Mobile differential torque
Energi Pressure Management combines tried-and-true pressure monitoring with next-generation technology. Energi-PM uses two pressure transducers to capture actual working pressure at the anchor drive. The Energi WiFi module calculates torque from the differential pressure measured at the hydraulic motor. The result is an accurate, effective way to generate differential torque for any single-speed anchor drive—with vital installation data captured accurately and easily.
Energi Pressure Management adapts to any single-speed make and model of anchor drive. The system monitors and records real-time helical pier installation on your mobile device.

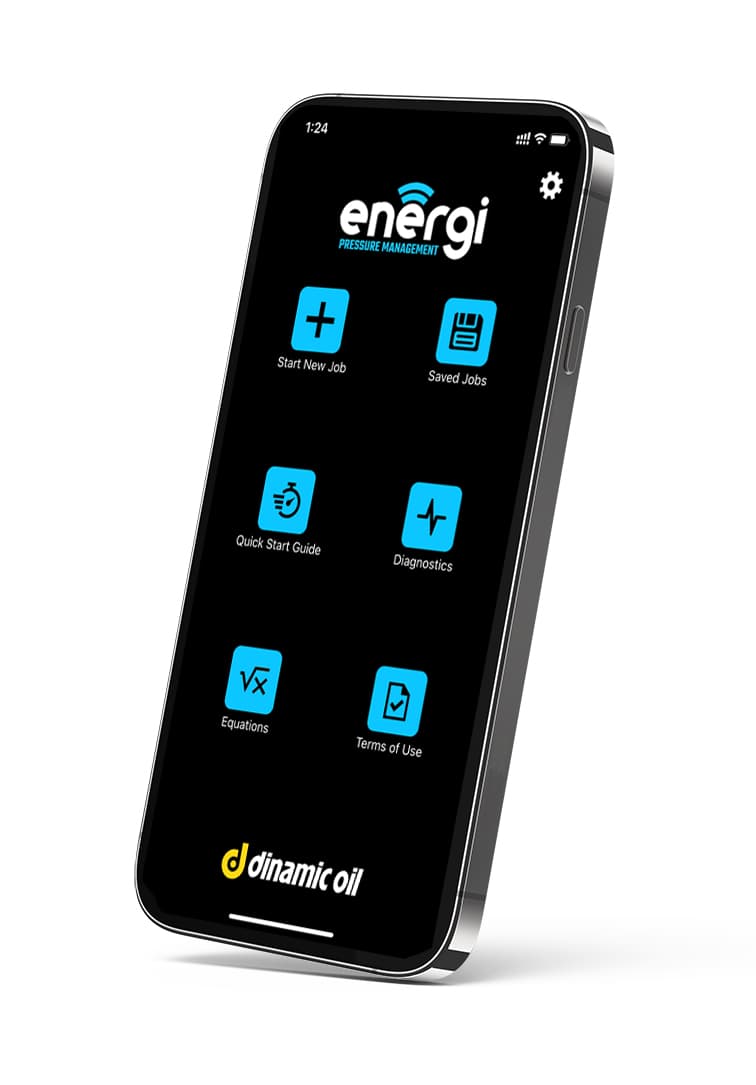

Mobile app
Get Energi Pressure Management
Install the free app on your iPhone or Android device to record installs, monitor torque and pressure, and email PDF reports from the field.
Apps are published by Dinamic Oil North America. Links open the official Apple App Store and Google Play listings.
On your device

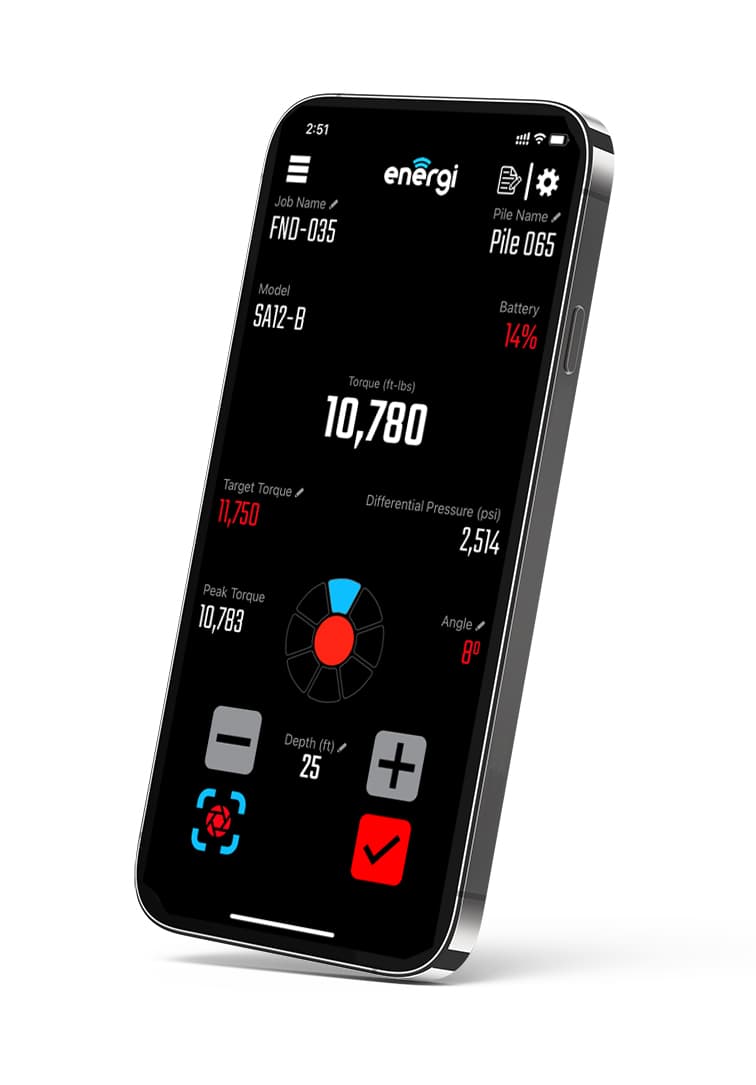

What you monitor and record
Field data captured during install—organized for reports and job documentation.
- Calculated torque
- Differential pressure
- Depth
- Angle
- Time & date
- Drive model
- Job notes
- Pile names / numbers
- Job name / information
Capabilities
Features
Highlights from the product overview—streamlined for spec review and field teams.
- Easily adapts to any single-speed make and model of anchor drive
- Real-time recording of time, date, torque, depth, angle, serial number, and drive model
- Recorded data compiled into easy-to-read PDF reports
- No cables—wireless connection between your mobile device and anchor drive attachment
- Two recording modes—Standard and Select—for flexible workflows
- 100 yard WiFi range
- Rugged polycarbonate WiFi module housing, IP67 rated
- Back-up recorded jobs to the cloud
- Torque output signal not affected by axial or radial loads on the gearbox output shaft
- 40-hour battery life between charges
- Free mobile app for iOS and Android
Product

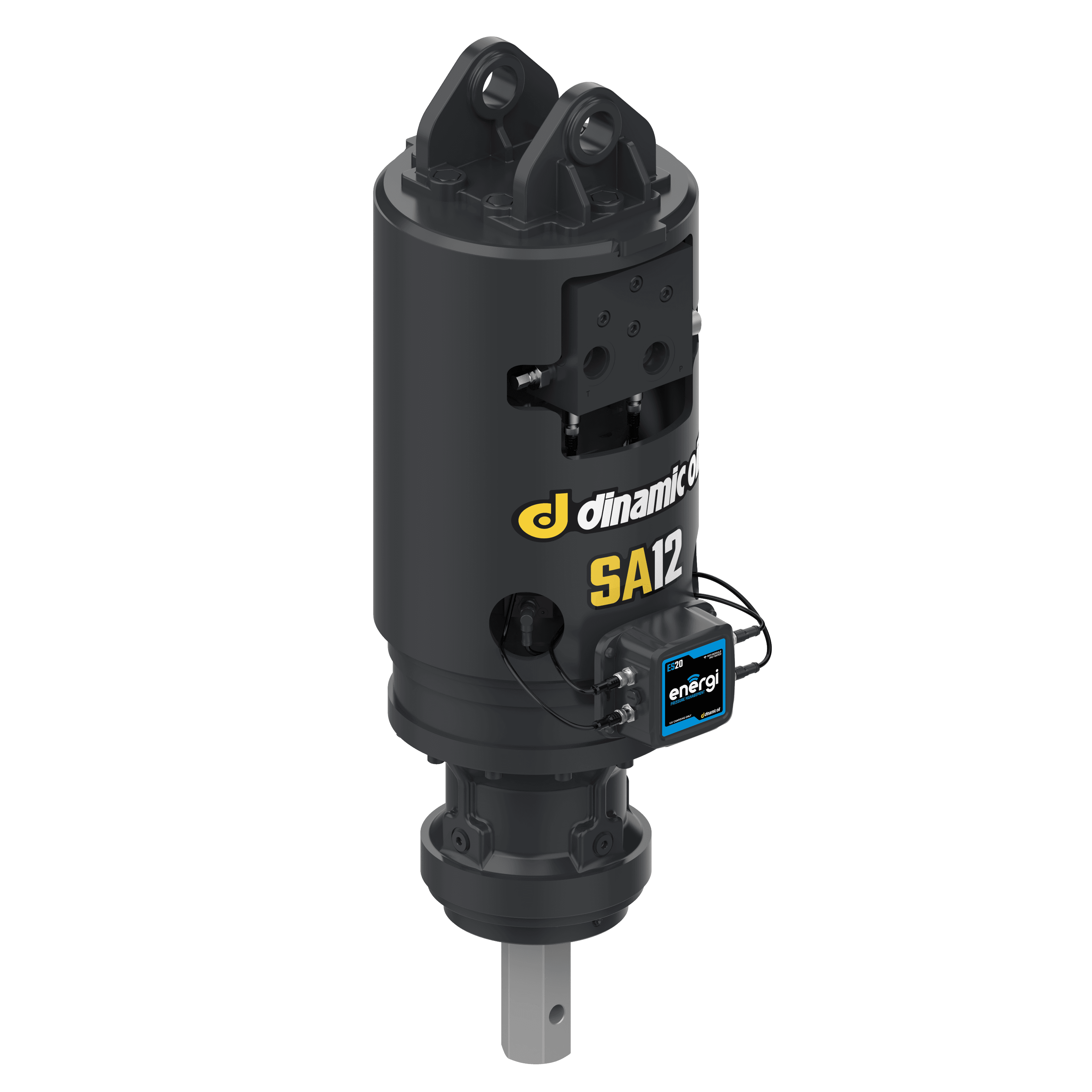

In the field
App workflow and drive-side context for Energi Pressure Management.
Accessories
Add-ons & spares
Typical options referenced from the official product pages—confirm fit with your anchor drive and system configuration.
Pressure transducers
Replacement pressure transducers are available. Each system requires two transducers to monitor incoming and return hydraulic system pressure.
Protective case
Store the WiFi module when not in use. Hard case with room for the module, cables, and charging cord.
Replacement cables
Replacement transducer cables in the correct lengths per anchor drive model.
Charging cord
Charges the WiFi module—12V charging only.
Literature
- Energi PM datasheet↗ (opens PDF in new tab)
- Energi PM QuickStart guide↗ (opens PDF in new tab)
